TERRA PLUS TL/316SS-T RGBW (it. 207410)

• LED type
  • RGBW5050MULTICHIP
• Number of LEDs
  • 12
• LED expected lifetime (hrs)
  • 50000
• Lumen max source (lm)
  • 4150
• Red lumen (lm)
  • 750
• Green lumen (lm)
  • 1800
• Blu lumen (lm)
  • 250
• White lumen (lm)
  • 1600
• Lenses
  • 8°
  • 15°
  • 15°x30°
  • 25°
  • 40°
  • 60°
• Filters (optional)
  • None
  • Filter f17° tilt
  • Filter f34° tilt
  • Elliptical projection filter 60° x n° (n° = native lens) horizontal
  • Elliptical projection filter n° x 60° (n° = native lens) vertical
• Connectors and cables
  • Main Power: 3x1mm cable H07 0,6mt
  • DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
• Control type
  • DMX - RDM
• Functions
  • Dedicated DMX channel for white balance from 2900K to 13000K
  • Dedicated DMX channel for Tilt
  • Dedicated DMX channel for macro
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Continuous dimming 0-100%
  • Smooth dimming function
  • Halogen simulation
  • CYM simulation
  • Flicker-free function
• Setup
  • RDM/DRS
• DMX channels
  • 11ch - 10ch - 9ch - 5ch - 4ch
• Input range
  • 100 - 277 VAC; 47/63 Hz
• Power max (W)
  • 45 W
• Current
  • 0,19A@230VAC
• Inrush current
  • 50A@230V

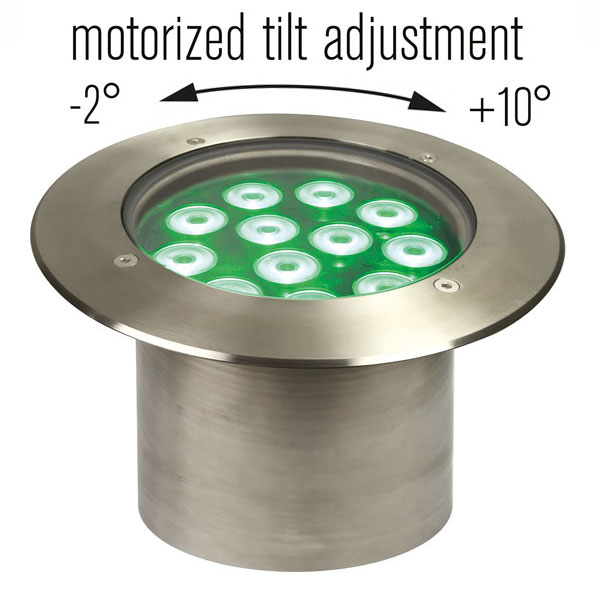

• Tilt
  • -2° / +10° by DMX
• IP protection rating
  • 67
• IK grade protection
  • 08
• Dimensions d x h (mm)
  • 290 x 200
• Weight (Kgs)
  • 5,5
• Materials
  • Ultra clear 12mm tempered glass
  • All in stainless steel AISI316
• Mounting systems
  • Inground
• Product Category
  • Inground
• Plastic Case TER-PLUS (art.900536)
  • No
  • Yes
• FILTER-SING TERRA PLUS (art.900417)
  • No
  • Yes
• FILTER-DOUB TERRA PLUS (art.900418)
  • No
  • Yes
