TERRA PLUS TL/316SS-T RGBW (it. 207410)

TERRA PLUS TL/316SS-T RGBW (it. 207410)

https://www.studiodue.com/web/image/product.template/53/image_1920?unique=5a91a4b

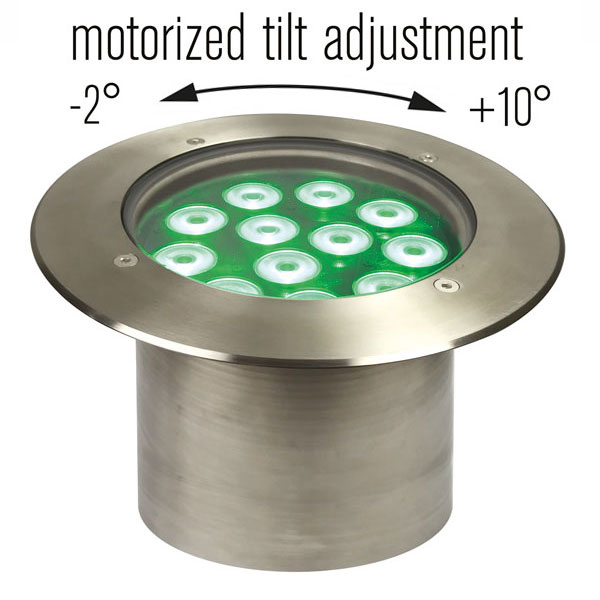

IP 67 protection rating inground LED fixture in stainless steel AISI 316 with 12 RGBW LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply




Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • LED expected lifetime (hrs)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Materials
  • Plastic Case TER-PLUS (art.900536)
  • FILTER-SING TERRA PLUS (art.900417)
  • FILTER-DOUB TERRA PLUS (art.900418)

This combination does not exist.

Contact Us


IP 67 protection rating inground LED fixture in stainless steel AISI 316 with 12 RGBW LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply




Specifications

Lighting source
LED type RGBW5050MULTICHIP
Lumen max source (lm) 4150
Red lumen (lm) 750
LED expected lifetime (hrs) 50000
Green lumen (lm) 1800
Number of LEDs 12
Blu lumen (lm) 250
White lumen (lm) 1600
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Control
Control type DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, Dedicated DMX channel for Tilt, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 11ch - 10ch - 9ch - 5ch - 4ch
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 45 W
Current 0,19A@230VAC
Inrush current 50A@230V
Physical
Materials Ultra clear 12mm tempered glass, All in stainless steel AISI316
Tilt -2° / +10° by DMX
IP protection rating 67
IK grade protection 08
Mounting systems Inground
Weight (Kgs) 5,5
Dimensions d x h (mm) 290 x 200
Product Category Inground
Others
Plastic Case TER-PLUS (art.900536) No, Yes
FILTER-SING TERRA PLUS (art.900417) No, Yes
FILTER-DOUB TERRA PLUS (art.900418) No, Yes
