TERRA PLUS TL/316SS-T M (it. 207610)

TERRA PLUS TL/316SS-T M (it. 207610)

https://www.studiodue.com/web/image/product.template/215/image_1920?unique=5a91a4b

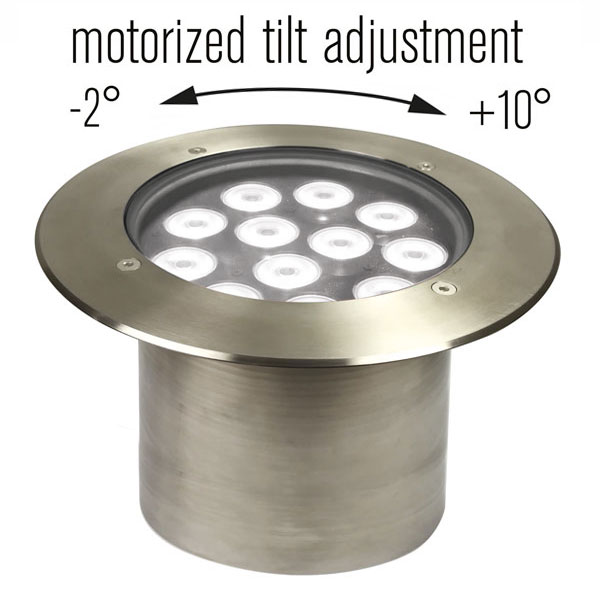

IP 67 protection rating inground White Balance fixture in stainless steel AISI 316 with 12 Monochromatic LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Number of LEDs
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Colour finishing
  • Materials
  • Plastic Case TER-PLUS (art.900536)
  • FILTER-SING TERRA PLUS (art.900417)
  • FILTER-DOUB TERRA PLUS (art.900418)

This combination does not exist.

Contact Us


IP 67 protection rating inground White Balance fixture in stainless steel AISI 316 with 12 Monochromatic LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply.

Specifications

Lighting source
LED type WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Lumen max source (lm) 6000
Number of LEDs 12
Optics
Lenses 4° , 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Control
Control type DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for Tilt, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 4ch - 3ch - 1ch
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 42
Current 0,19A@230VAC
Physical
Materials Ultra clear 12mm tempered glass, All in stainless steel AISI316
Tilt -2° / +10° by DMX
IP protection rating 67
IK grade protection 08
Mounting systems Inground
Weight (Kgs) 5,5
Dimensions d x h (mm) 290 x 200
Product Category Inground
Colour finishing None
Others
Plastic Case TER-PLUS (art.900536) No, Yes
FILTER-SING TERRA PLUS (art.900417) No, Yes
FILTER-DOUB TERRA PLUS (art.900418) No, Yes
