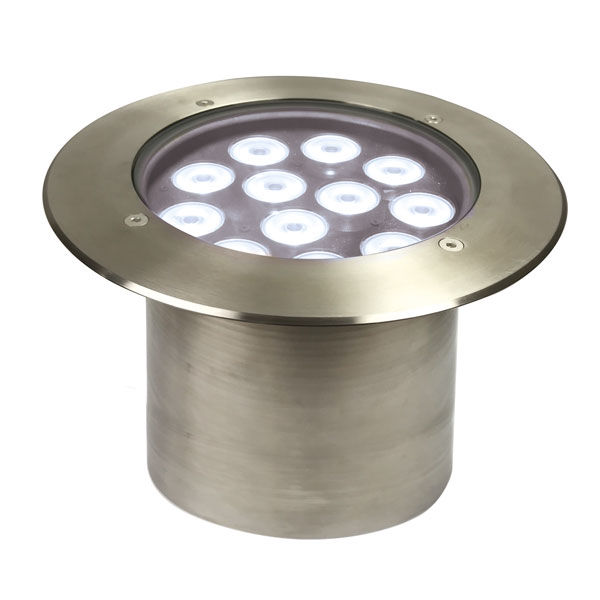

TERRA PLUS TL/316SS PLUG-IN M (it. 207300)
IP67 protection rating inground LED fixture in stainless steel AISI 316. 24 Monochromatic LEDs. On-board power supply. Tilt adjustment -2° +10° by factory on request.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 12 |
| Lumen max source (lm) | 6000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 0,6mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 42 |
| Current | 0,19A@230VAC |
| Physical | |
|---|---|
| Materials | Ultra clear 12mm tempered glass, All in stainless steel AISI316 |
| IP protection rating | 67 |
| Mounting systems | Inground |
| Tilt | -2° / +10° |
| Weight (Kgs) | 5,5 |
| Dimensions d x h (mm) | 290 x 200 |
| Product Category | Inground |
| Colour finishing | None |
| IK grade protection | 08 |
| Others | |
|---|---|
| Plastic Case TER-PLUS (art.900536) | No, Yes |
| FILTER-SING TERRA PLUS (art.900417) | No, Yes |
| FILTER-DOUB TERRA PLUS (art.900418) | No, Yes |
