Product Description

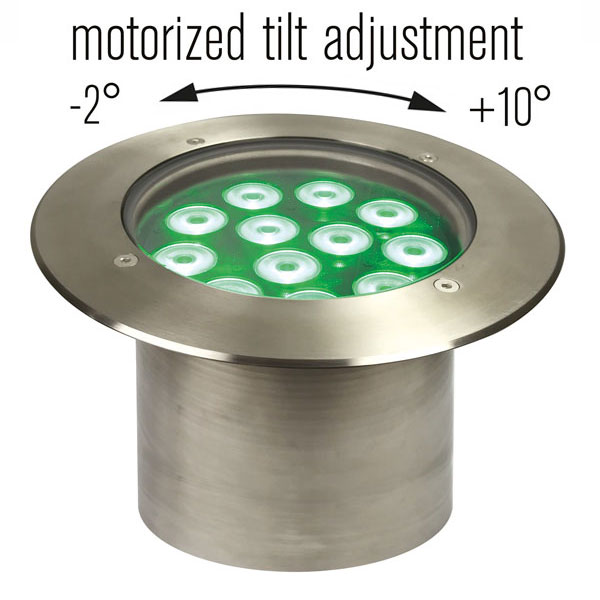

IP 67 protection rating inground LED fixture in stainless steel AISI 316 with 12 RGBW LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
12
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
4150
|
Red lumen (lm)
|
750
|
Green lumen (lm)
|
1800
|
Blu lumen (lm)
|
250
|
White lumen (lm)
|
1600
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Filter f17° tilt
Filter f34° tilt
Elliptical projection filter 60° x n° (n° = native lens) horizontal
Elliptical projection filter n° x 60° (n° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H07 0,6mt
DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
Dedicated DMX channel for Tilt
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
11ch - 10ch - 9ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
45 W
|
Current
|
0,19A@230VAC
|
Inrush current
|
50A@230V
|
| Physical | |
Materials
|
Ultra clear 12mm tempered glass
All in stainless steel AISI316
|
Tilt
|
-2° / +10° by DMX
|
IP protection rating
|
67
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
290 x 200
|
Weight (Kgs)
|
5,5
|
Mounting systems
|
Inground
|
| Uncategorized | |
Plastic Case TER-PLUS (art.900536)
|
No
Yes
|
FILTER-SING TERRA PLUS (art.900417)
|
No
Yes
|
FILTER-DOUB TERRA PLUS (art.900418)
|
No
Yes
|
