Product Description

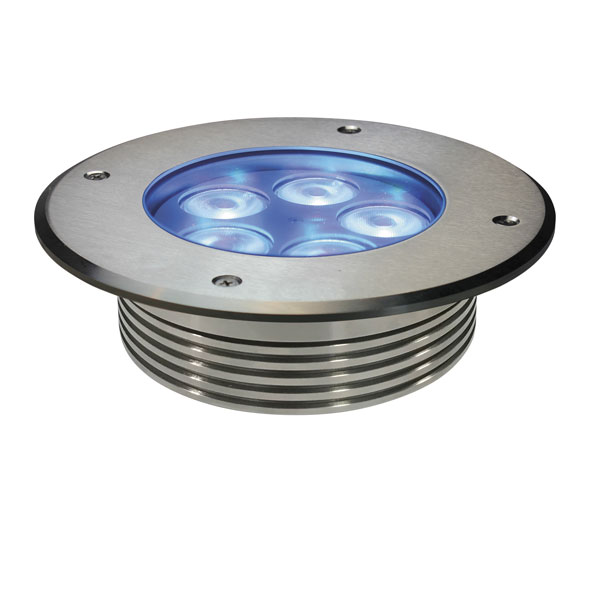

20V-48V version IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n.5 x 10W RGBW LEDs.

Downloads

UM_Terra-Aria POB_all series.pdf
Technical specification
LED type
RGBW5050MULTICHIP
Number of LEDs
5
LED expected lifetime (hrs)
50000
Lumen MAX
1815
Red lumen (lm)
330
Green lumen (lm)
770
Blu lumen (lm)
110
White lumen (lm)
715
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 17° tilt
f34° tilt
f 60°
f 65°
f 100°
f 8°x 60°
Connectors and cables
Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
Control type
Protocol USITT DMX512 - RDM
Functions
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
9ch - 6ch - 5ch - 4ch
Input range
20 - 48 VDC
Power (W)
18
Current
0.4A@48VDC
IP protection rating
67
68 optional
IK grade protection
08
Dimensions d x h (mm)
190 x 52,5
Weight (Kgs)
2,7
Materials
Ultra clear 10mm tempered glass
Mounting systems
Inground
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
