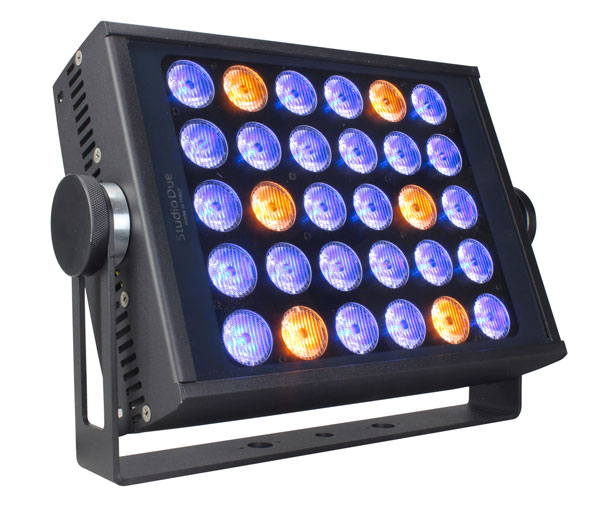

STUDIO 300 RGBWA (it. 176010)
Wash LED colorchanger fixture ( 24 RGBW + 12 Amber LEDs) with control panel (4 push buttons on the rear of the fixture). IP20 protection rating.
Documents
Wash LED colorchanger fixture ( 24 RGBW + 12 Amber LEDs) with control panel (4 push buttons on the rear of the fixture). IP20 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBWA |
| Lumen max source (lm) | 14600 |
| Red lumen (lm) | 2200 |
| Green lumen (lm) | 5000 |
| Number of LEDs | 36 |
| Blu lumen (lm) | 700 |
| White lumen (lm) | 5000 |
| Amber lumen (lm) | 2400 |
| Optics | |
|---|---|
| Lenses | 8°, 12°, 15°x30°, 15°x55°, 24°, 36°, 60° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + push button panel |
| DMX channels | 10ch - 7ch - 6ch - 5ch |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 160 |
| Current | 0,7A@230V |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1 |
| Materials | PMMA lenses, Polyester powder coated |
| Tilt | 360° |
| IP protection rating | 20 |
| Sizes l x p x h (mm) | 365 x 90 x 265 |
| Weight (Kgs) | 6,6 |
| Product Category | Spot |
