Product Description

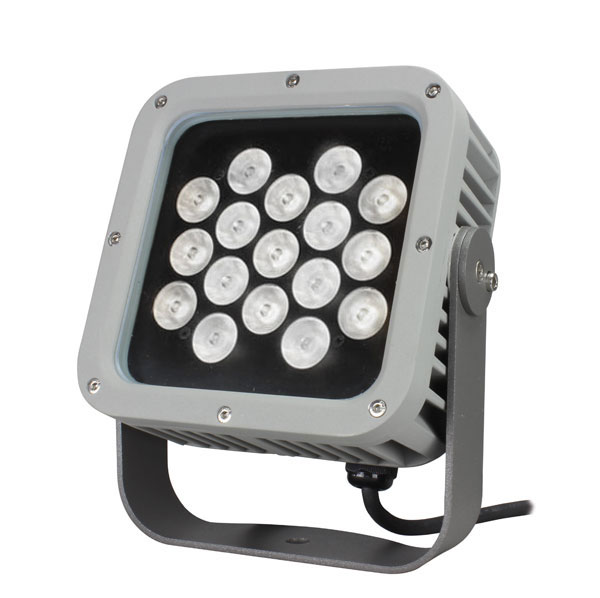

Small form factor, compact design IP 67 floodlight projector. PLUG IN version. 17 LEDs (4000K). 23 mm lenses
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 5000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
17 NICHIA-NVSL219C
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
4200
|
| Optics | |
Lenses
|
5°
10°x30°
12°
15°x55°
24°
36°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x n° (n° = native lens) horizontal
Elliptical projection filter n° x 60° (n° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1,5mm cable
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
Plug-in
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
36
|
Current
|
0,16A@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Any RAL (optional)
Specify RAL
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
175°
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
175 x 95 x 205
|
Weight (Kgs)
|
2,2
|
| Optional/Accessories | |
Accessories - Barn door
|
None
Yes
|
