Product Description

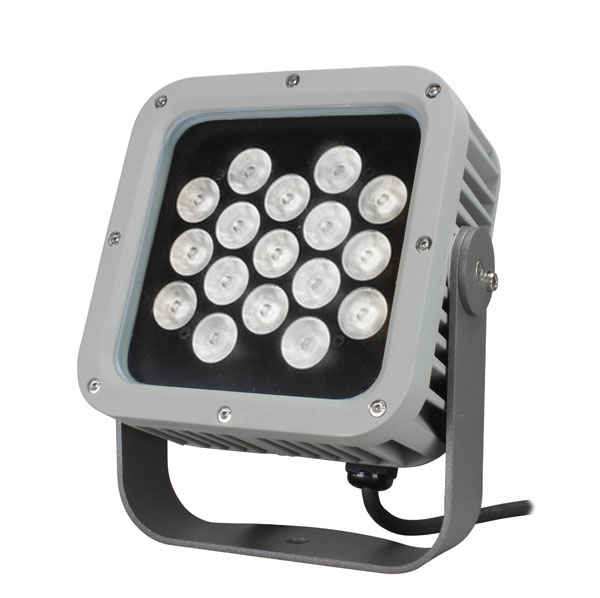

Small form factor, compact design IP 67 floodlight projector. PLUG IN version. 17 LEDs (4000K). 23 mm lenses

Downloads

UM_SMART series.pdf
Technical specification
Icon attribute
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 5000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
17 NICHIA-NVSL219C
LED expected lifetime (hrs)
50000
Lumen MAX
4200
Lenses
10°x30°
12°
24°
36°
Filters (optional)
Diffuser filter on request: indicate a required value (X° - Y°)
Connectors and cables
Main Power: 3x1,5mm cable
Control type
Plug-in
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
36
Current
0,16A@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Marine Grade treatment
None
Yes
Tilt
175°
IP protection rating
67
Sizes l x p x h (mm)
175 x 95 x 205
Weight (Kgs)
2,2
Colour finishing
Grey RAL 9006 (standard)
Accessories - Barn door
None
Yes
