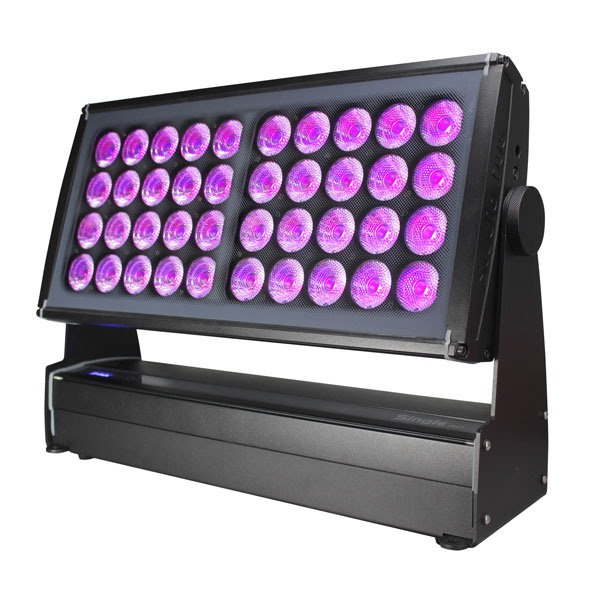

SINGLE 40HP RGBW (it.140310)
Hi Power wash LED colorchanger with high brightness RGBW LEDs even more powerful. Lighting fixtures with a large and uniform light output. IP67 protection rating.
Hi Power wash LED colorchanger with high brightness RGBW LEDs even more powerful. Lighting fixtures with a large and uniform light output. IP67 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Number of LEDs | 40 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 28000 |
| Red lumen (lm) | 6720 |
| Green lumen (lm) | 9400 |
| Blu lumen (lm) | 2000 |
| White lumen (lm) | 12400 |
| Colour temperature range (K) | 2000 - 10000 |
| Optics | |
|---|---|
| Lenses | 6°, 10°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 10ch - 9ch - 4ch |
| Setup | RDM/DRS + touch control panel |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 320 |
| Current | 1,4A@230VAC |
| Inrush current | 60A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 613 x 184 x 415 mm |
| Weight (Kgs) | 19 |
| Product Category | Wall Washer |
| Others | |
|---|---|
| 540LED-FROST (art.900409) | No, Yes |
| 540-BD (art.900107) | No, Yes |
| 540-AG (art.900007) | No, Yes |
| SINGLE CASEx2 (art. a richiesta) Flight Case | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
