Product Description

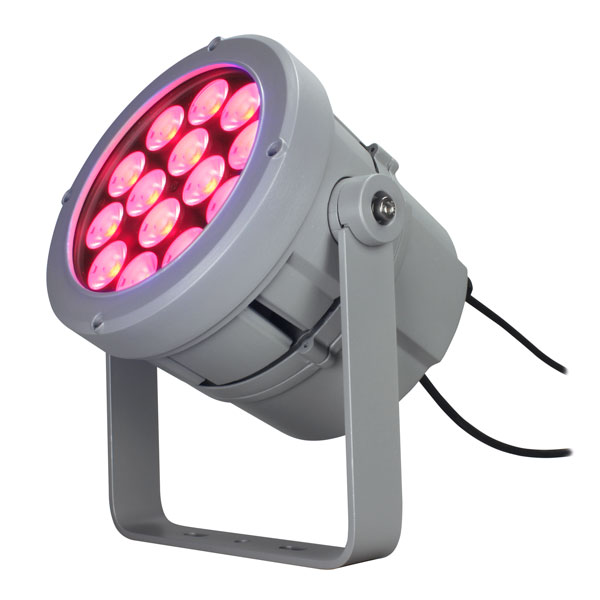

Hi Power wash LED Par colorchanger. 14 RGBnW LEDs. Control panel with 4 buttons. Ip 20 protection rating.
Downloads
Technical specification
Lighting source | |
---|---|
LED type
|
RGB-NW (white 4000K)
|
Number of LEDs
|
14 (5050-20W) RGB-NW (White 4000K)
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
8950
|
Red lumen (lm)
|
1950
|
Green lumen (lm)
|
3500
|
Blu lumen (lm)
|
600
|
White lumen (lm)
|
3500
|
Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 60°
f 100°
f 8°x 60°
|
Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin connector (male-female)
|
Control | |
Control type
|
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
|
Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + push button panel
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
105
|
Current
|
0,5A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
Inrush current
|
50A@230V
|
Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
360°
|
IP protection rating
|
20
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
247x190x300mm
|
Weight (Kgs)
|
4,6
|
Colour finishing
|
Grey RAL 9006 (standard)
|
Optional/Accessories | |
Accessories - Barn door
|
None
Yes
|
