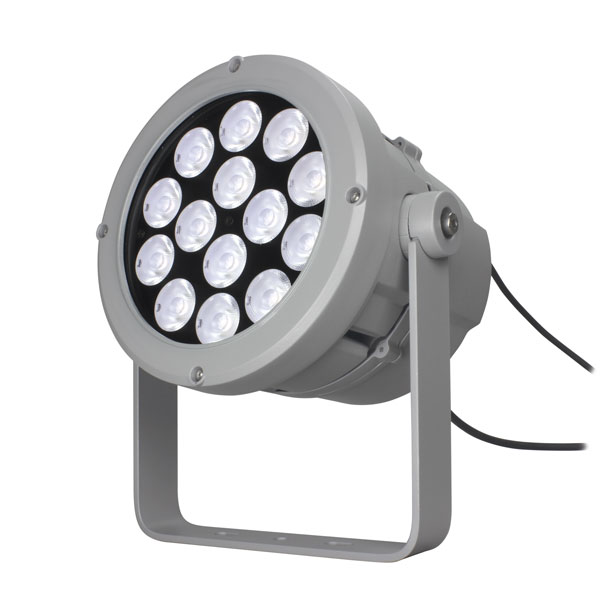

PARLED 300 PRO M (it. 202210)

PARLED 300 PRO M (it. 202210)

https://www.studiodue.com/web/image/product.template/227/image_1920?unique=5a91a4b

Monochromatic wash LED par colorchanger IP 67 protection rating. 14 Neutral White LEDs. PLUG-IN version.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Barn door
  • CLAMP/C (art.900516)
  • SAFETY WIRE/C (art.900523)
  • PARLED300-BD (art.900113)
  • PARLED300-AG (art.900010)
  • PARLED300-SN (art.900200)
  • PARLED300-CL (art.900301)

This combination does not exist.

LED type WHITE 2700K, WHITE 4000K, WHITE 5000K
Number of LEDs 14 NICHIA NV4L144
LED expected lifetime (hrs) 50000
Lumen max source (lm) 13000
Lenses 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 3ch - 1ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 90
Current 0,4A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 360°
IP protection rating 67
IK grade protection 07
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 247x190x300mm
Weight (Kgs) 4,6
Product Category Spot
Accessories - Barn door None, Yes
CLAMP/C (art.900516) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
PARLED300-BD (art.900113) No, Yes
PARLED300-AG (art.900010) No, Yes
PARLED300-SN (art.900200) No, Yes
PARLED300-CL (art.900301) No, Yes
