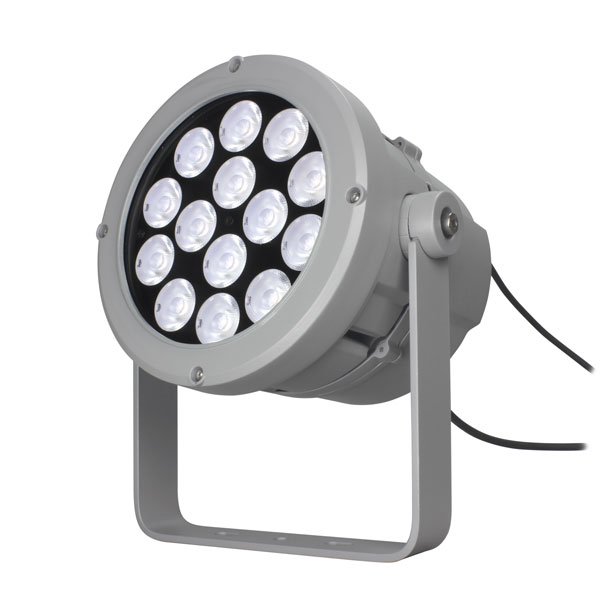

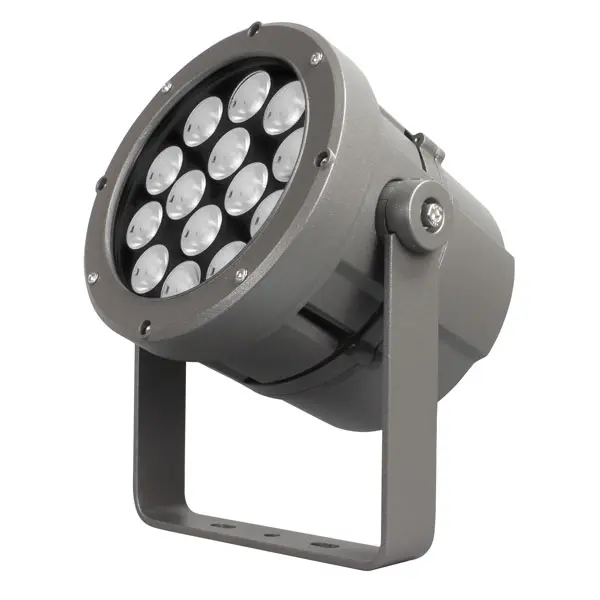

PARLED 300 M PLUG-IN (it.202200)
Very robust case, to ensure a very long term reliability specifically for harsh environments
Documents
Very robust case, to ensure a very long term reliability specifically for harsh environments
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 5000K |
| Number of LEDs | 14 NICHIA NV4L144 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 13000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 90 |
| Current | 0,4A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Grey RAL 9006 (standard) , Any RAL (optional) |
| Marine Grade treatment | None, Yes |
| Tilt | 360° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 247x190x300mm |
| Weight (Kgs) | 4,6 |
| Product Category | Spot |
| Optional/Accessories | |
|---|---|
| Accessories - Barn door | None, Yes |
| Others | |
|---|---|
| PARLED300-BD (art.900113) | No, Yes |
| PARLED300-AG (art.900010) | No, Yes |
| PARLED300-SN (art.900200) | No, Yes |
| PARLED300-CL (art.900301) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
