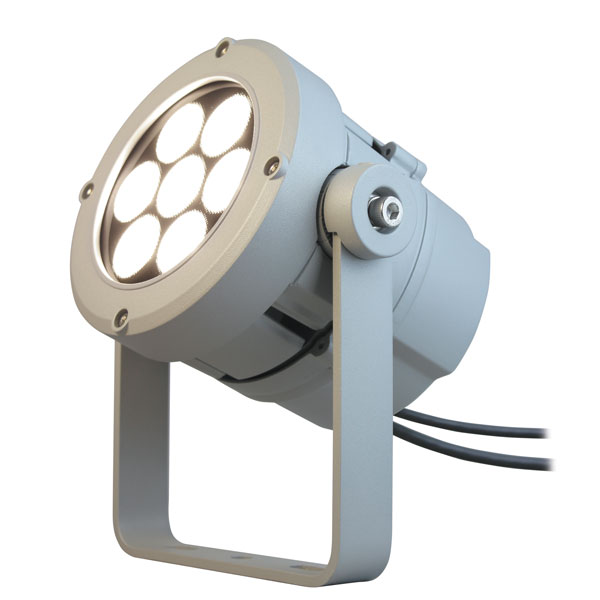

PARLED 100 DRS M (it.150910)
Wash LED Par light. 7 High Power Monochromatic LEds. Remote configuration by DRS Setup device. IP 67 protection rating.
Documents
Wash LED Par light. 7 High Power Monochromatic LEds. Remote configuration by DRS Setup device. IP 67 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 7 Hi-Power White (Warm, Neutral, Cool) |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 4000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| DMX channels | 3ch - 1ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 26 |
| Current | 0,11A@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Tilt | 360° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 185x140x230 |
| Weight (Kgs) | 2 |
| Product Category | Spot |
| Others | |
|---|---|
| PARLED100-BD (art.900112) | No, Yes |
| PARLED100-CL (art.900302) | No, Yes |
| PARLED100-SN (art.900202) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
