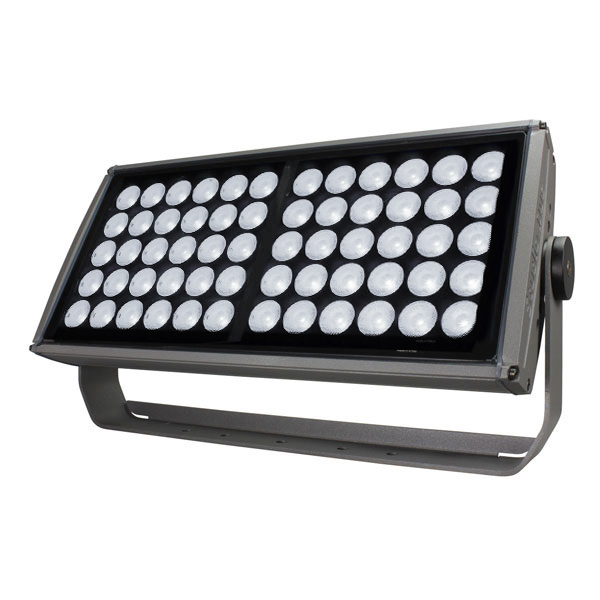

MEGAWHITE 66 M PLUG IN (it. 211000)

MEGAWHITE 66 M PLUG IN (it. 211000)

https://www.studiodue.com/web/image/product.template/756/image_1920?unique=e6b1b0f

High power Monochromatic fixture. 60 high brightness (5W) white LEDs. Grado di protezione IP 67. Versione Plug-In

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Anti glare
  • Accessories - Barn door

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 60 White (5W)
Lumen max source (lm) 32000
Lenses 4° , 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1mm cable H05 1,5mt
Control type Plug-in
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 230
Current 1A@230VAC
Power Factor PF>0,95@230VAC
Inrush current 80A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 640x162x320
Weight (Kgs) 15
Product Category Wall Washer
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
Contact Us


High power Monochromatic fixture. 60 high brightness (5W) white LEDs. Grado di protezione IP 67. Versione Plug-In
