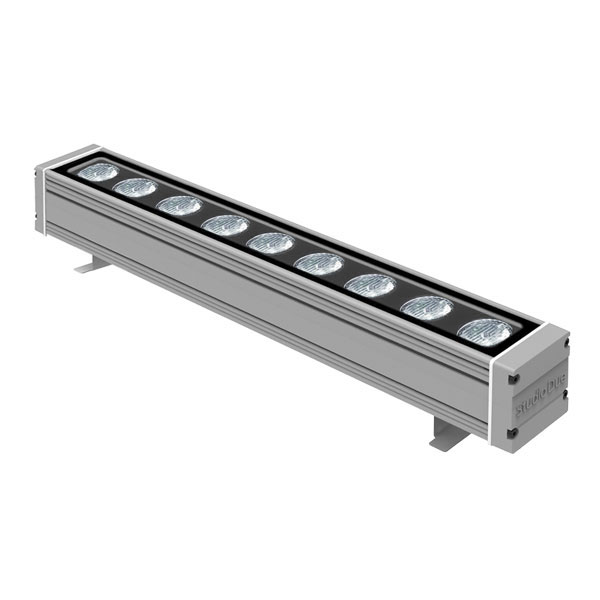

COMPACTBAR M 50cm (it. 212112)
Monochromatic compact LED linear bar with 38 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses)
Monochromatic compact LED linear bar with 38 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses)
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 4050 |
| Number of LEDs | 9 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| DMX channels | 3ch - 1ch |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 30 |
| Inrush current | 0,15A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Graphite gray, White RAL 9010 (optional), Any RAL (optional) |
| Tilt | 160° |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 540 x 71 x 115 |
| Weight (Kgs) | 3,2 |
| Product Category | Linear Bar |
