COMPACT 52 RGBWA (it. 213610)

COMPACT 52 RGBWA (it. 213610)

https://www.studiodue.com/web/image/product.template/854/image_1920?unique=5a91a4b

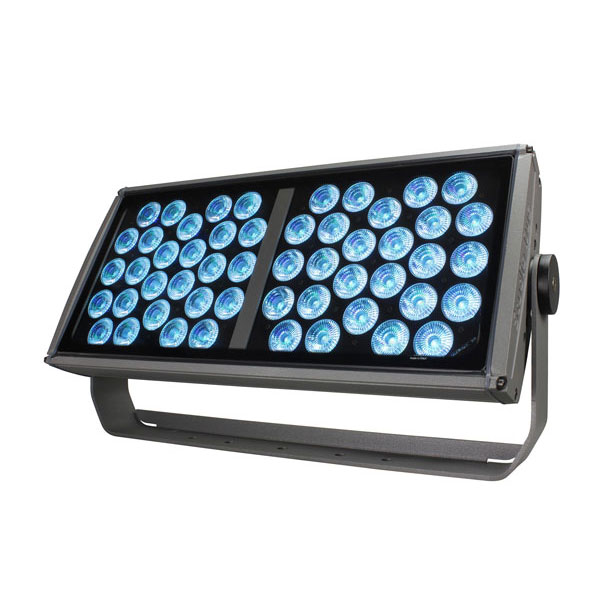

Compact long distance LED lighting Hi PowerRGBWA IP 67 colorchanger. 52 powerful RGBWA LEDs, 42mm lenses






Specifications

Lighting source
LED type RGBWA
Number of LEDs 52
LED expected lifetime (hrs) 50000
Lumen max source (lm) 22000
Red lumen (lm) 4000
Green lumen (lm) 7000
Blu lumen (lm) 2000
White lumen (lm) 8000
Amber lumen (lm) 3000
Optics
Lenses 15°, 20°, 25°, 35°
Filters (optional) Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 10ch - 7ch - 6ch - 5ch
Setup RDM/DRS
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 200
Current 0,9A@230VAC
Power Factor PF>0,95@230VAC
Physical
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional), Graphite gray, White RAL 9010 (optional), Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
IP protection rating 67
Sizes l x p x h (mm) 640 x 120 x 320
Weight (Kgs) 14
Product Category Wall Washer
Optional/Accessories
Accessories - Flight case None, Yes
Accessories - Barn door None, Yes
Accessories - Anti glare None, Yes
