COMPACT 52 RGBWA (it. 213610)

COMPACT 52 RGBWA (it. 213610)

https://www.studiodue.com/web/image/product.template/854/image_1920?unique=5a91a4b

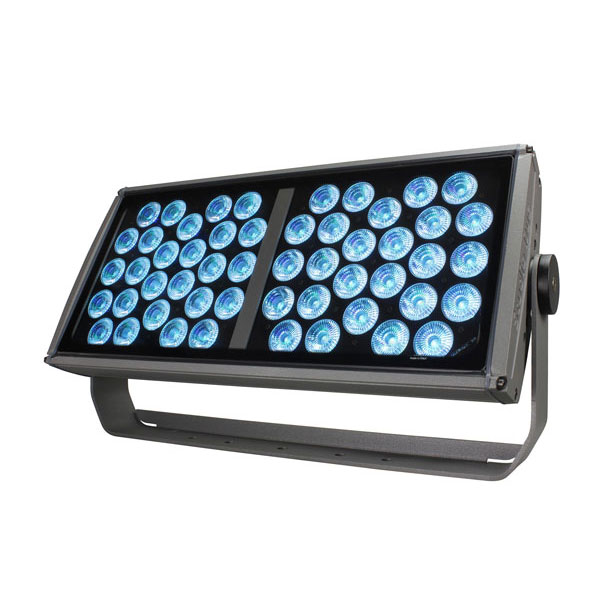

Compact long distance LED lighting Hi PowerRGBWA IP 67 colorchanger. 52 powerful RGBWA LEDs, 42mm lenses

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Amber lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Flight case
  • Accessories - Anti glare
  • Accessories - Barn door

This combination does not exist.

LED type RGBWA
Number of LEDs 52
LED expected lifetime (hrs) 50000
Lumen max source (lm) 22000
Red lumen (lm) 4000
Green lumen (lm) 7000
Blu lumen (lm) 2000
White lumen (lm) 8000
Amber lumen (lm) 3000
Lenses 15°, 20°, 25°, 35°
Filters (optional) Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 10ch - 7ch - 6ch - 5ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 200
Current 0,9A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional), Graphite gray, White RAL 9010 (optional), Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 640 x 120 x 320
Weight (Kgs) 14
Product Category Wall Washer
Accessories - Flight case None, Yes
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
Contact Us


Compact long distance LED lighting Hi PowerRGBWA IP 67 colorchanger. 52 powerful RGBWA LEDs, 42mm lenses
