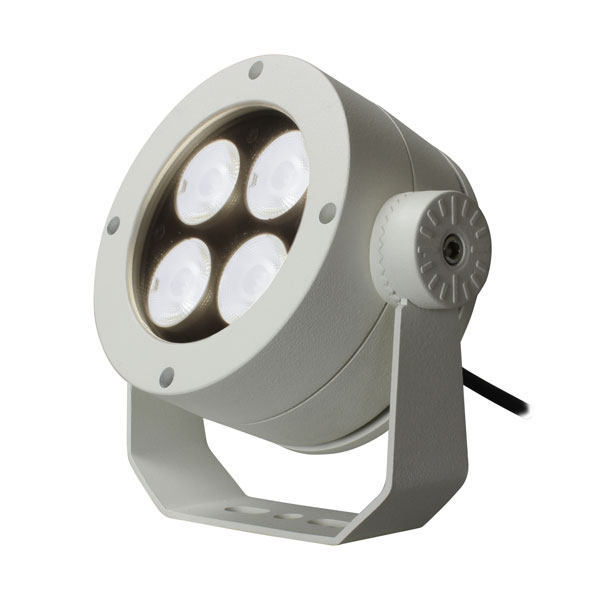

CLEVER SPOT 4 M PLUG-IN (it.220800)
Small wash LED spot with 4 High Power Monochromatic LEDs. PLUG-IN version. IP 67 protection rating.
Small wash LED spot with 4 High Power Monochromatic LEDs. PLUG-IN version. IP 67 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 1150 |
| LED expected lifetime (hrs) | 50000 |
| Number of LEDs | 4 White 4000K LEDs 3535 1.8A max |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x30°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: cable 3x0,75mm |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 120 - 240 VAC; 47/63 Hz |
| Power max (W) | 13 |
| Current | 60mA@230VAC |
| Inrush current | 45A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Tilt | 360° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 145 x 70 x 156 |
| Weight (Kgs) | 1,1 |
| Product Category | Spot |
| Others | |
|---|---|
| CLAMP/C (art.900516) | No, Yes |
| CLEVER SPOT-SN (art.900203) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
| CLEVER SPOT-CL (art.900305) | No, Yes |
