Product Description

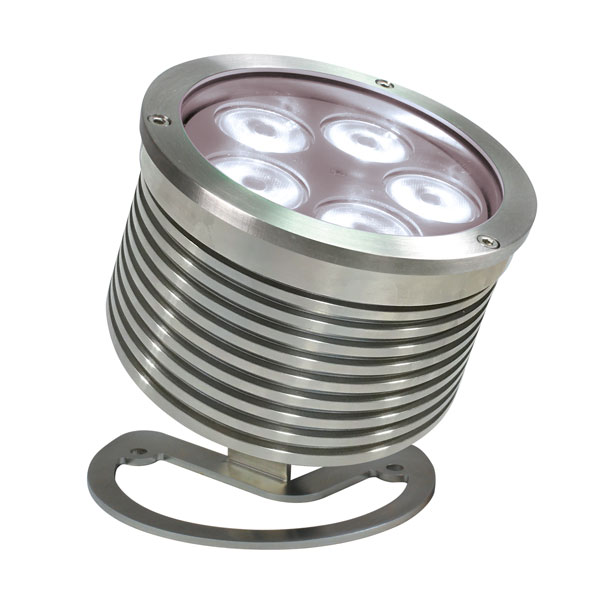

On board power supply IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n. 5 x 10W Monochromatic LEDs. DMX-RDM-DRS version.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
10
|
Lumen MAX
|
2500
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Filter f17° tilt
Filter f34° tilt
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + DALI
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
18
|
| Physical | |
IP protection rating
|
67
68 optional
|
Mounting systems
|
Surface
Truss (optional)
|
Dimensions d x h (mm)
|
134 x 137
|
Weight (Kgs)
|
4
|
Materials
|
Ultra clear 10mm tempered glass
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
